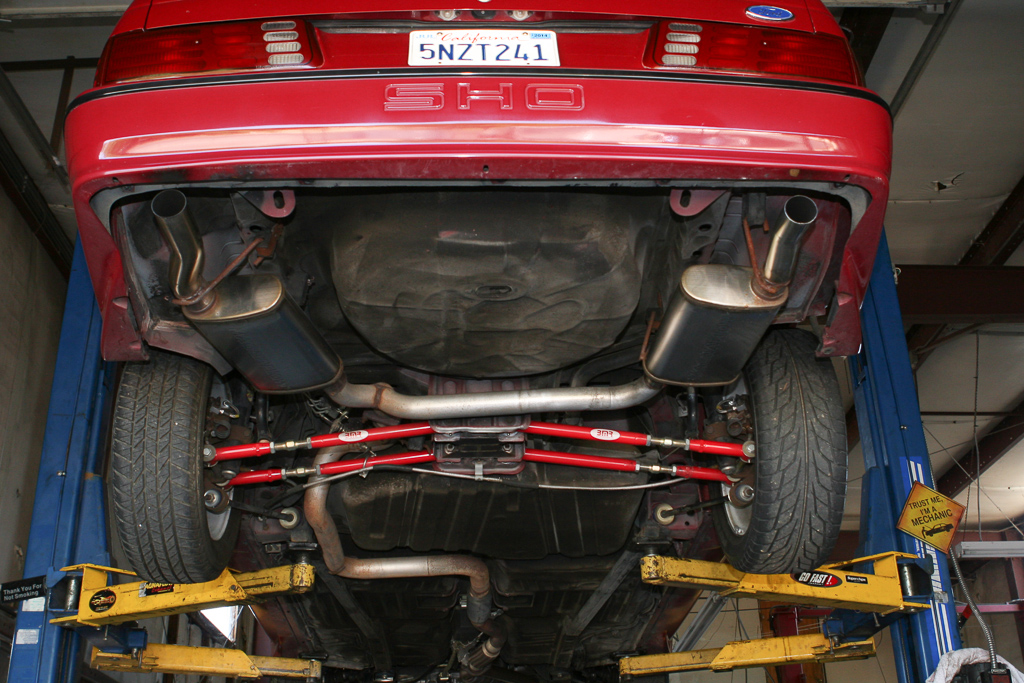

Underside, Rear

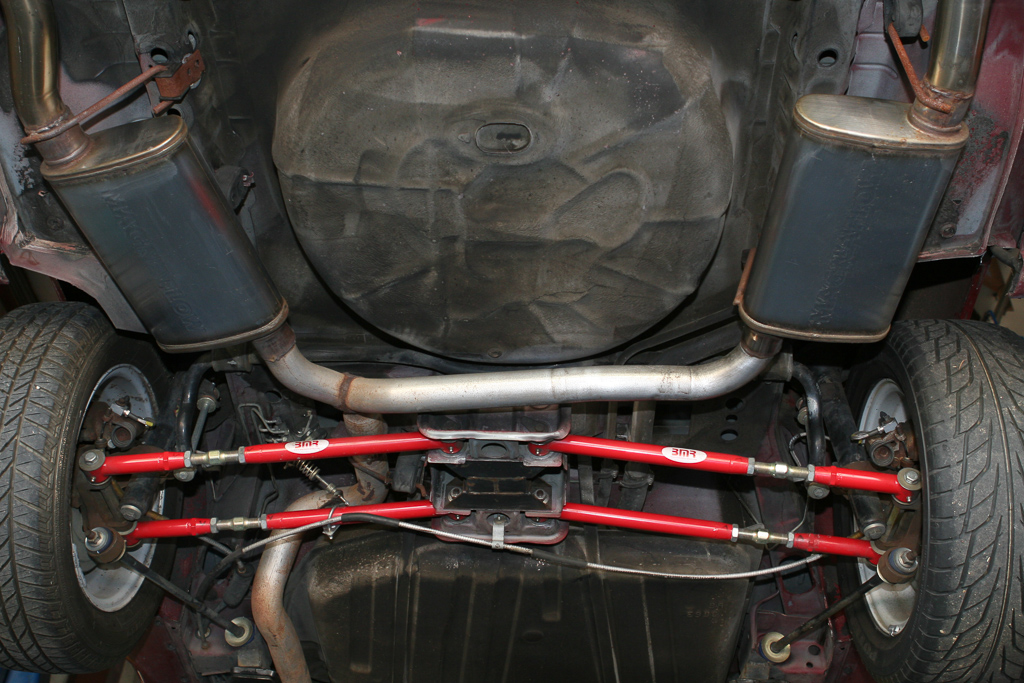

Shown are the Magnaflow mufflers.
1989 Ford Taurus SHO Engine

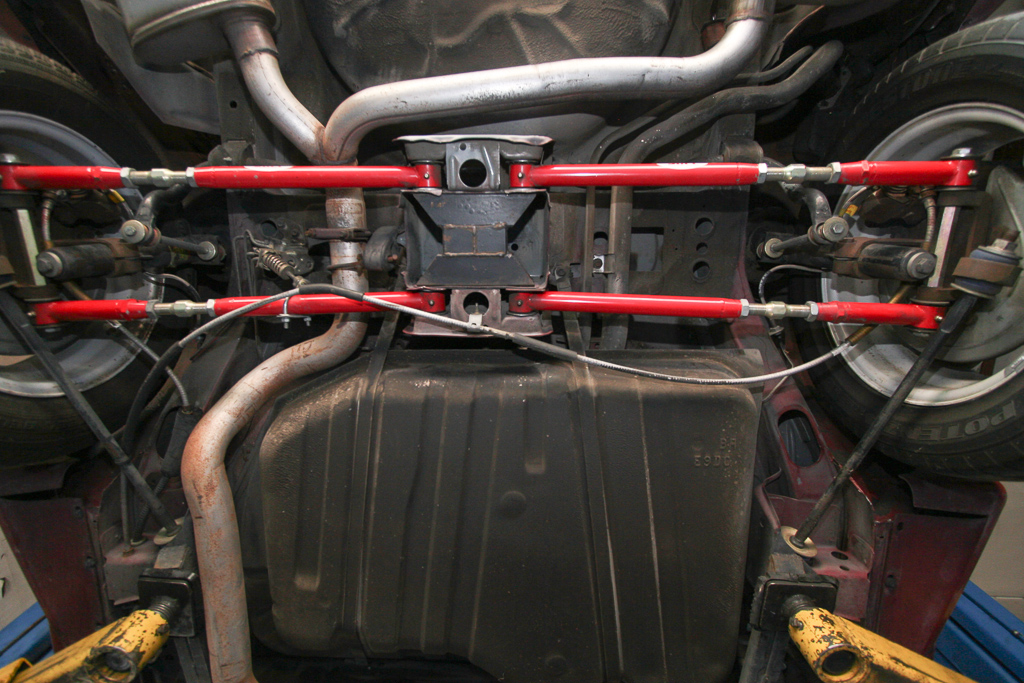

BWR Rear Arms
1989 Ford Taurus SHO Engine
Reinforced X-brace.
1989 Ford Taurus SHO Engine

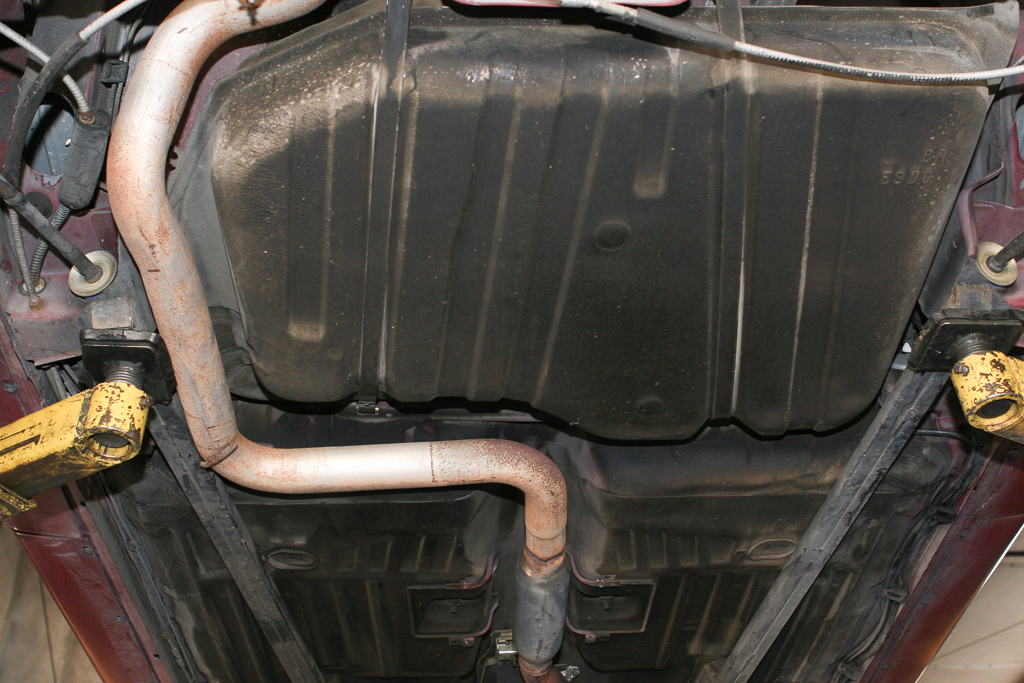

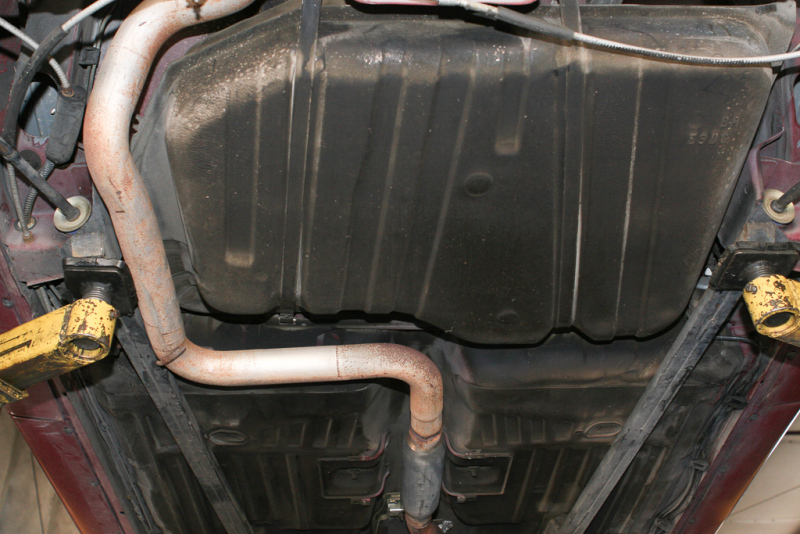

Underside, Middle

1989 Ford Taurus SHO Engine

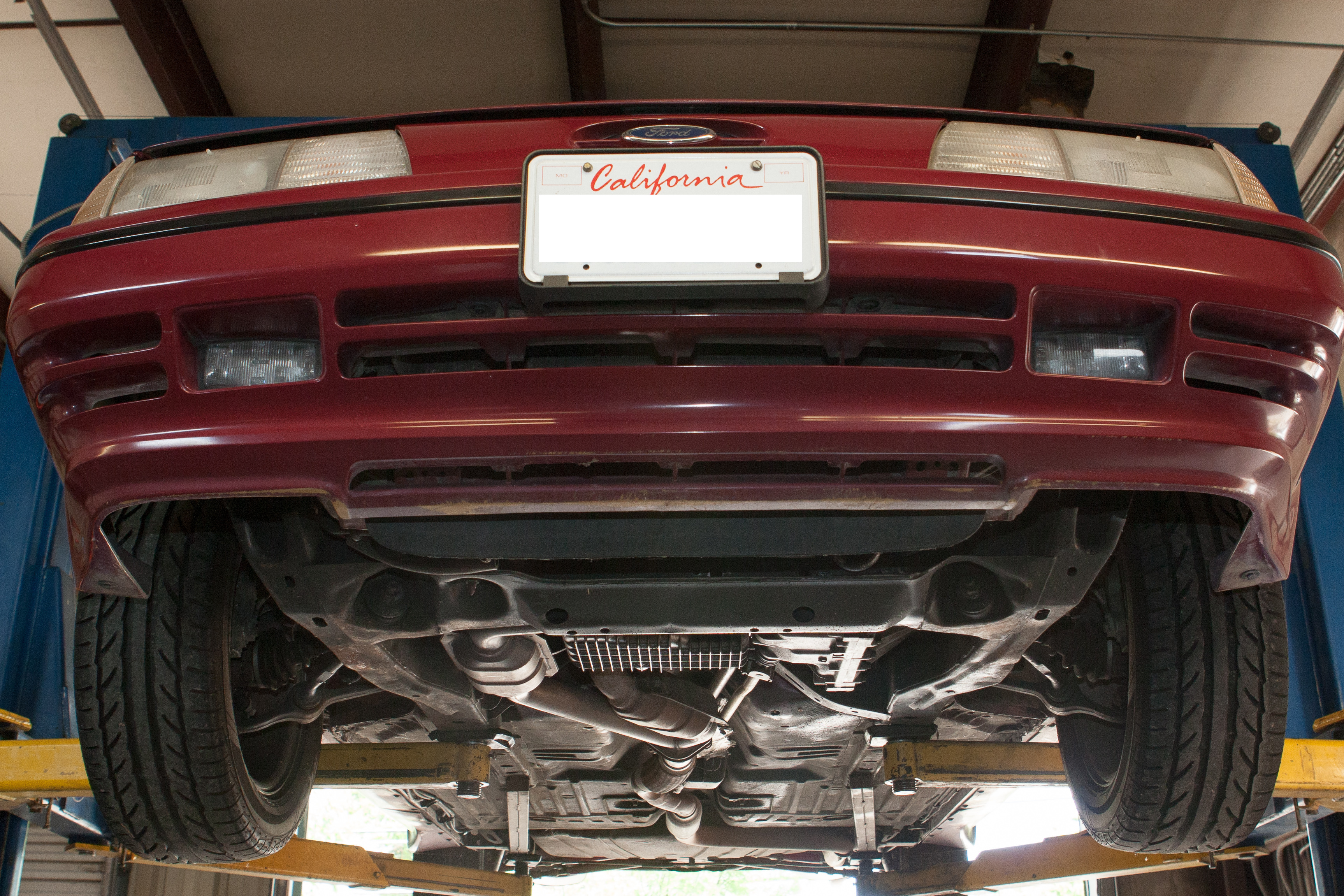

Underside, Front

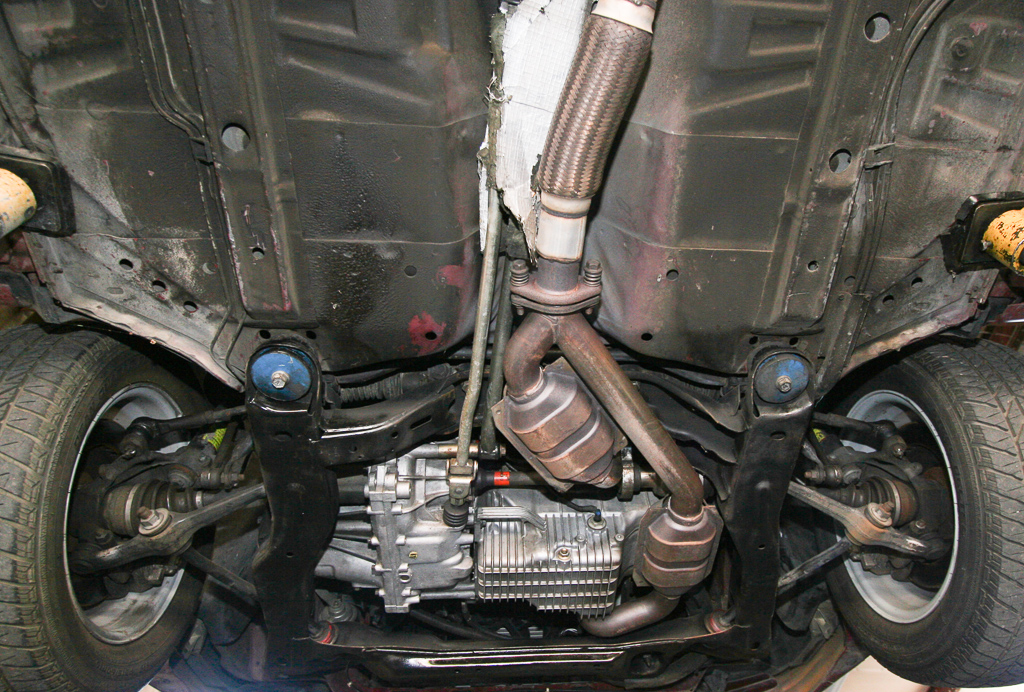

The flex coupling helps prevent stress on the muffler flange. The rod shifter makes shifts feel more direct. Performance catted Y pipe. Transmission is tapped for Quaife cooler. The Oil pan is tapped for turbo/supercharger. The upper side of the subframe was degreased, sanded, and painted when the engine swap occurred.
1989 Ford Taurus SHO Engine
1989 Ford Taurus SHO Engine
